Κάμερα Οπισθοπορείας Στρογγυλή AHD Universal 170° ACV 772000-6002

Κάμερα Οπισθοπορείας Στρογγυλή AHD Universal 170° ACV 772000-6002Χαρακτηριστικά:

only suitable for AHD monitors
AHD universal rear view camera
Design: round
Mounting type: substructure
With orientation lines / mirroring function
Construction: plastic with retaining clips
Color: black
Extras: Orientation lines via jumper / mirroring function via jumper
Sensor type: 1/2.8" AHD
Image system: NTSC color
Effective pixels: 1080 x 720
Lens: mm / F
Lux: 0.03
Resolution: TV lines
Lens angle: diagonal 210°
Viewing angle: horizontal 170° vertical 120° +5°
Dust and water resistant: IP69K
Connection: 4 pin acv system plug Ø5.2mm
Operating voltage: +3V DC
Supply voltage: +12V / +24V DC > with voltage converter
Current consumption: 100mA
Operating temperature range: -20°C - 77°C
Storage temperature: -40°C - 85°C
Dimensions: H 30mm / 17mm - 30.5mm
Note:- acv cameras are suitable for continuous operation- Before installation > check the viewing angle and camera alignment at the installation location using a test monitor- Camera operating voltage: +3V- Camera supply voltage: +12V / +24V- Connection without the +3V voltage converter included in delivery will damage the camera- Connection: red: +12V / +24V switched, load-stable fused, black: body ground direct/GND- Cinch(m) yellow: video- Jumper: green: activate/deactivate orientation lines, white: activate/deactivate mirroring function

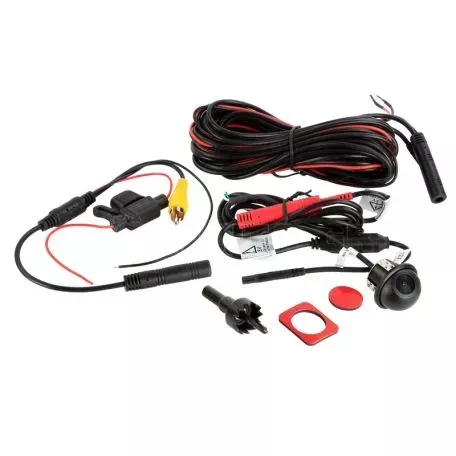

Λεπτομέρειες Προϊόντος Θέση: Πίσω Περιλαμβάνει: Βίδες Στερέωσης Περιλαμβάνει: Κιτ Καλωδίωσης Περιλαμβάνει: Ποτηροτρύπανο Πλήθος Τεμαχίων: 1 Τεμάχιο Χρώμα: Μαύρο Universal | Universal | Universal
